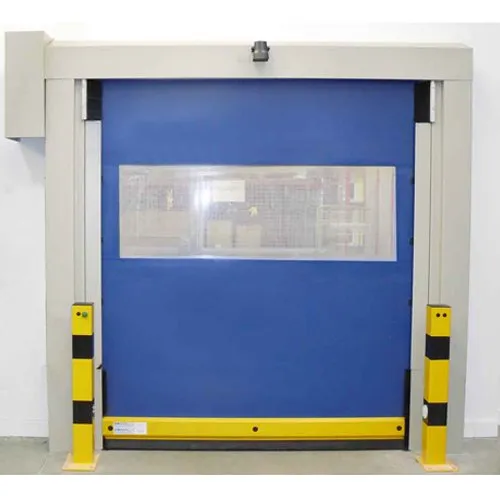

VVS Rapid Doors
VVS Rapid Doors are specially designed to ensure the short door passage time and there by
fast, reliable, and safe working conditions. This will result in high efficiency in
production and distribution.
Many industries like food processing field is highly influenced by this rapid action doors
which ensures, energy savings, high work efficiency and short door passage time.
Safety: VVS rapid doors are having an inbuilt sensor in the bottom seal, which
will provide a
safe working condition. When any obstacles come in the field of the sensor, the door will stop
and returns. All rapid doors are made with national safety regulations.
The door has designed in such a way that the door can easily reintroduces with out repair after
a crash to reduce production down time and maintenance.
Fabric Specifications: The door leaves of VVS rapid doors are made up of 1.8mm
thick polyester
fabric with integrated aluminium ribs, giving resistance to air pressure and moderate wind
forces. The crosswire weaving fabric added its resistance to wind and air pressure. The
transparent window is resistant to solar radiation by its ultraviolet filter integrated on the
fabric. All panels including transparent window are replaceable.
Motor specifications: Direct drive operator with electro-magnetic brake,
Standard 220/380V, 60Hz, 1Hp motor which is strong to use in any enterprise.
It has been designed so that it shall give its full power. By using energy saver EFFI motor the
high productivity of which is on the forefront, reduce power loss transforming to heat at the
proportion of 45%. Energy saving motors are compatible with EPACT (Energy Policy Act of America
1992) for the 60Hz operating frequency.
Insulation class: F (DURIGNIT IR 2000 insulation system)
Heating class: B
Compatibility: In standards of CE,ISO9001, DIN/VDE, IEN/EN.
Protection: EEX IIC type (EEX motors are protecting from temperature rise.
While ambient
temperature rises, these motors are secure against explosions and designed to provide safety
standard).
