Industrial Over Head Doors
VVS Sectional Overhead Doors are designed for the use of Industrial and commercial
buildings. They can be used in ware houses, logistic centers, cold storages and all kinds of
production units. These doors provide maximum tightness and insulation. It is designed to
save as much space as possible around the door opening by sliding up under the roof while
opening.
VVS Sectional Overhead Doors are fulfill the new standards based on the construction
products directive, mandatory within the European Union.
Sections of these doors are made up of PU filled sandwich panels covered with steel sheets,
which provide, maximum insulation, protection and light weight. All hardware parts also made
up of good quality materials.
VVS Sectional doors are in different colors. Standard inside color is off-white. Colors can be
customer oriented.

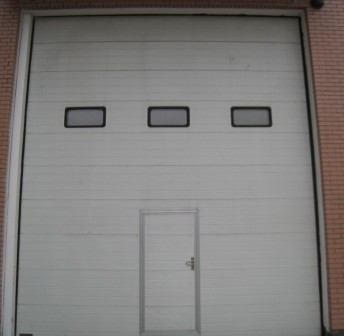

Windows are fixed on the panel to ensure the outside view without opening the door. The number
of windows depend on the need of day light inside.
| TECHNICAL DATA | |
|---|---|
| Maximum size of the door | 8500 (W) x 5500 (H) mm |
| Panel thickness | 40 mm |
| Color | Customer oriented or standard (RAL5010 outside and RAL 9002 inside) |
| Wind load | EN 12424 class 2 standard (can be made with more wind load on request) |
| Insulation | EN 12428 class 2 |
| Water proof | EN 12425 class 2 |
| Air tightness | EN 12426 class 2 |
| Windows | Optional |
| Pass door | Optional |
| Automation | Optional |
